Medicabay Healthcare Systems introduces its Medical Air Plant, engineered to provide a reliable and continuous supply of high-quality medical compressed air for healthcare facilities. Designed with advanced compression and treatment technologies, the system delivers clean, dry, and dependable medical air, supporting the essential requirements of modern hospitals and medical centers.
Medical Air Plant
MAP Series - Medical Air Plants
Key Components

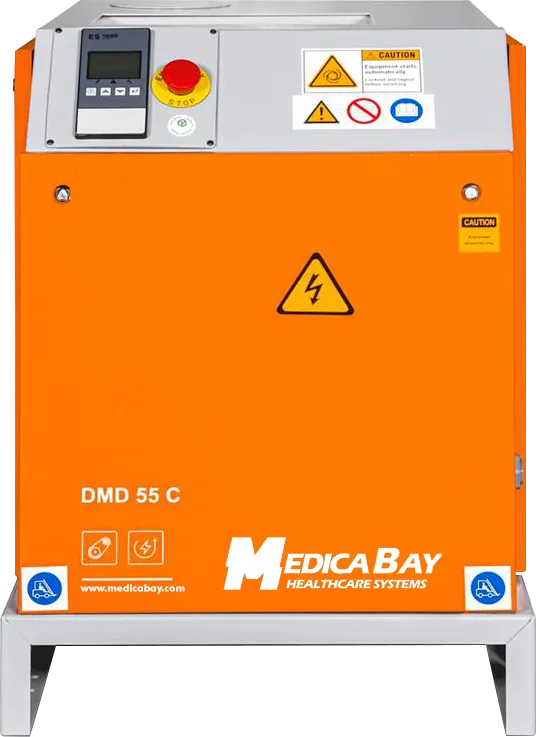

- Compressors: Available in multiple models and capacities, including duplex, triplex, and other configurations, customized to meet the diverse needs of healthcare facilities.

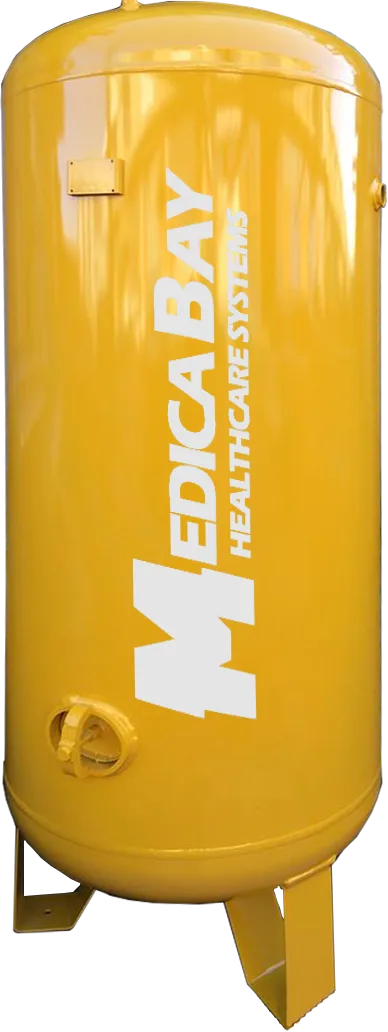

- Air Receivers: Versatile designs to fit a wide range of spatial requirements, ensuring adaptability in different installation environments.

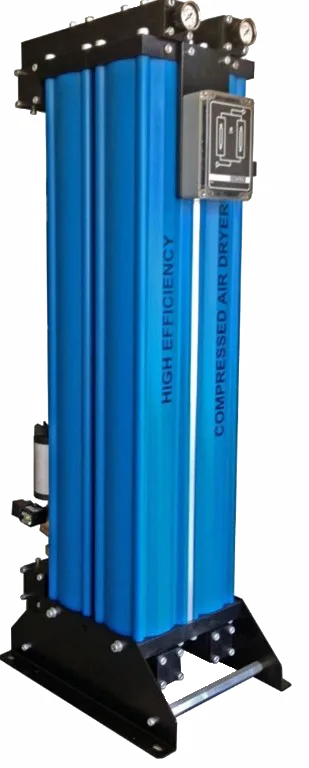

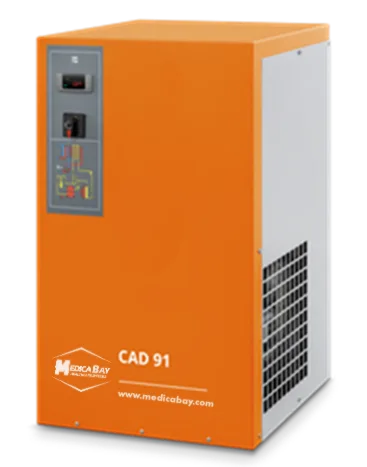

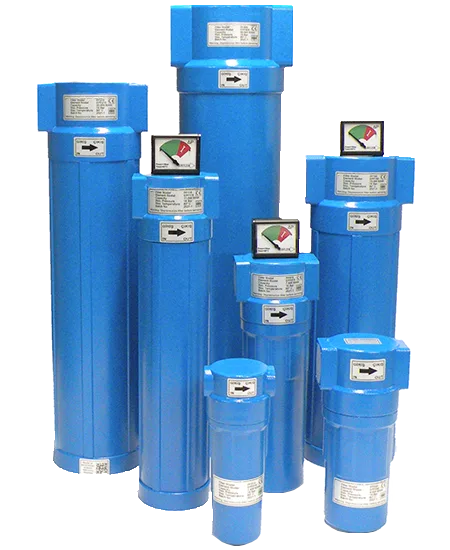

- Filter/Dryer Assembly: Advanced filtration and desiccant heatless dryers that guarantee optimal air quality, ensuring pure medical air at all times.

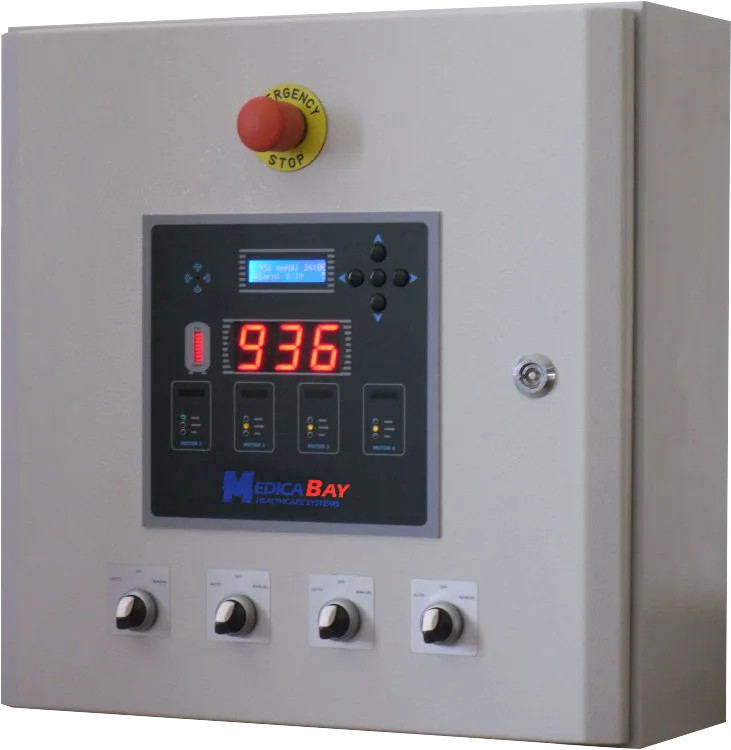

- Control System: Microprocessor-based system for seamless operation, real-time monitoring, and precise control of the air supply.
- Interconnecting Pipework & Cabling: Precision-engineered to optimize the functionality and performance of the entire system.
Performance & Adaptability
- Modularity & Configurability: Designed for easy adaptation to specific site conditions and customer needs, allowing for tailored solutions.

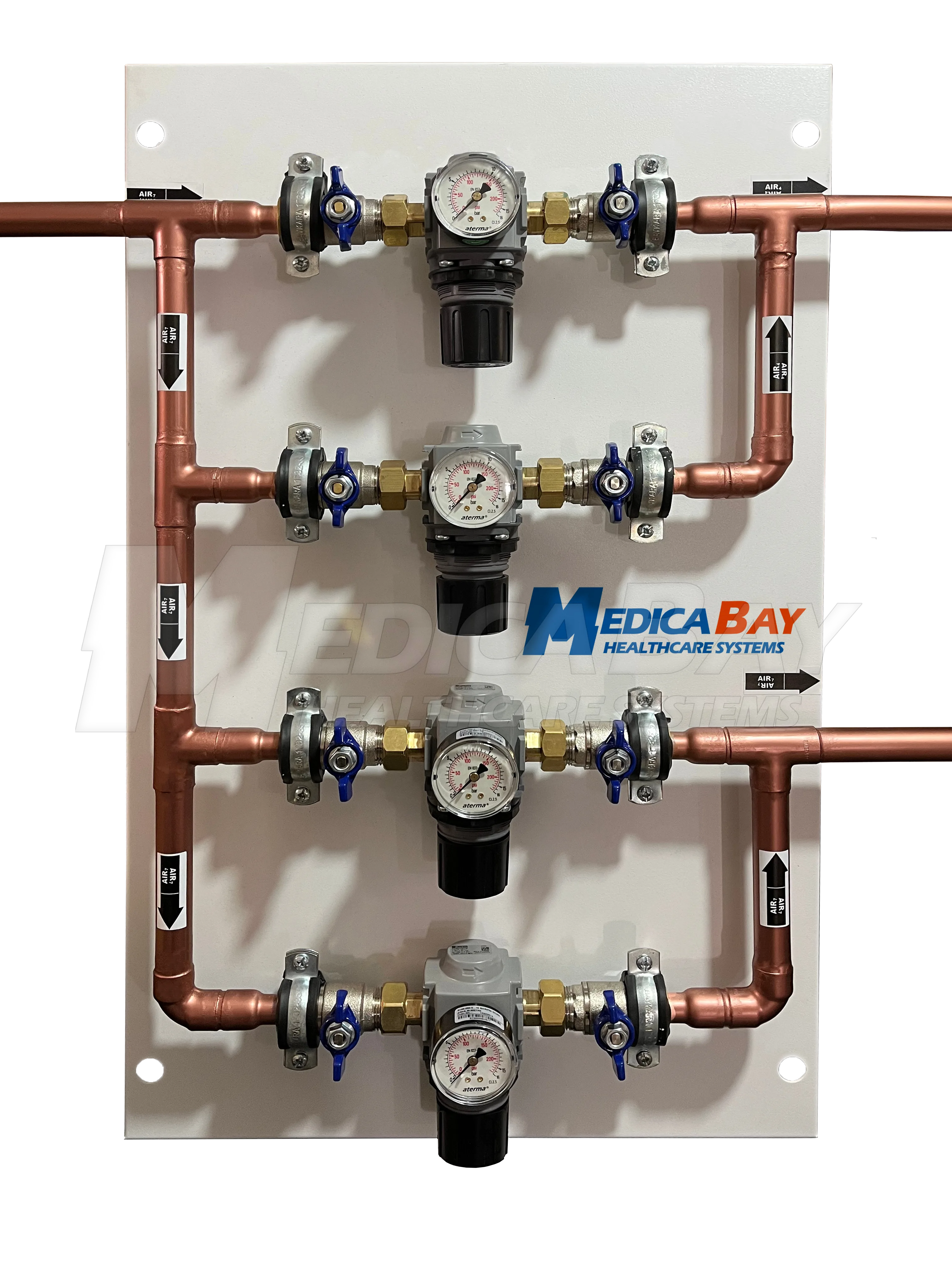

- Pressure Output: Duplex pressure regulators provide flexible output options, including 7 bar and 4 bar, ensuring reliable operation across multiple applications.
- Compliance: Our Medical Air Plant meets HTM 02-01, HTM 2022, European, and ISO standards, ensuring the highest level of safety, quality, and operational excellence.
Benefits
- Reliability: Multiple systems ensure continuous and uninterrupted air supply, crucial for medical facilities.
- Safety Assurance: The microprocessor-based control system ensures monitored operation, providing safety at every step of the process.
- Customization: The modular design of our air plant allows for easy modifications to suit specific site conditions and customer preferences.
- Compliance & Quality: Adheres to rigorous industry standards to guarantee safe, compliant, and high-performance operation.
Operating Conditions
- Operating Range: Designed to operate within a temperature range of 5°C to 45°C (optimal: 20°C to 35°C).
- Critical Consideration: The system requires a clean, heated environment for optimal performance and efficiency.
| MEDICAL AIR PLANT MODEL CODE | TYPE | PRESSURE (bar) | CAPACITY OF EACH COMPRESSOR | NET PLANT OUTPUT HTM02-01 (m³/h) | NET PLANT OUTPUT HTM02-02 (lpm) | POWER (kW) | NOISE LEVEL (dB(A)) | |
|---|---|---|---|---|---|---|---|---|
| (m³/h) | (lpm) | |||||||
| MGS.MAP2C030 | Duplex | 10 bar | 19,2 | 320 | 18,24 | 304 | 2,2 | 67 |
| MGS.MAP3C030 | Triplex | 18,24 | 304 | |||||
| MGS.MAP4C030 | Quadruplex | 36,48 | 608 | |||||
| MGS.MAP2C040 | Duplex | 10 bar | 22,8 | 380 | 21,66 | 361 | 3 | 67 |
| MGS.MAP3C040 | Triplex | 21,66 | 361 | |||||
| MGS.MAP4C040 | Quadruplex | 43,32 | 722 | |||||
| MGS.MAP2C055 | Duplex | 10 bar | 30 | 500 | 28,5 | 475 | 4 | 68 |
| MGS.MAP3C055 | Triplex | 28,5 | 475 | |||||
| MGS.MAP4C055 | Quadruplex | 57 | 950 | |||||
| MGS.MAP2C075 | Duplex | 10 bar | 41,4 | 690 | 39,33 | 655,5 | 5,5 | 68 |
| MGS.MAP3C075 | Triplex | 39,33 | 655,5 | |||||
| MGS.MAP4C075 | Quadruplex | 78,66 | 1311 | |||||
| MGS.MAP2C100 | Duplex | 10 bar | 57,6 | 960 | 54,72 | 912 | 7,5 | 68 |
| MGS.MAP3C100 | Triplex | 54,72 | 912 | |||||
| MGS.MAP4C100 | Quadruplex | 109,44 | 1824 | |||||
| MGS.MAP2C150 | Duplex | 10 bar | 80,4 | 1340 | 76,38 | 1273 | 11 | 68 |
| MGS.MAP3C150 | Triplex | 76,38 | 1273 | |||||
| MGS.MAP4C150 | Quadruplex | 152,76 | 2546 | |||||
| MGS.MAP2C200 | Duplex | 10 bar | 134,4 | 2240 | 127,68 | 2128 | 15 | 68 |
| MGS.MAP3C200 | Triplex | 127,68 | 2128 | |||||
| MGS.MAP4C200 | Quadruplex | 255,36 | 4256 | |||||
| MGS.MAP2C250 | Duplex | 10 bar | 156 | 2600 | 148,2 | 2470 | 18,5 | 69 |
| MGS.MAP3C250 | Triplex | 148,2 | 2470 | |||||
| MGS.MAP4C250 | Quadruplex | 296,4 | 4940 | |||||
| MGS.MAP2C300 | Duplex | 10 bar | 187,2 | 3120 | 177,84 | 2964 | 22 | 71 |
| MGS.MAP3C300 | Triplex | 177,84 | 2964 | |||||
| MGS.MAP4C300 | Quadruplex | 355,68 | 5928 | |||||
| MGS.MAP2C400 | Duplex | 10 bar | 217,2 | 3620 | 206,34 | 3439 | 30 | 74 |
| MGS.MAP3C400 | Triplex | 206,34 | 3439 | |||||
| MGS.MAP4C400 | Quadruplex | 412,68 | 6878 | |||||
| MGS.MAP2C401 | Duplex | 10 bar | 297 | 4950 | 282,15 | 4702,5 | 37 | 75 |
| MGS.MAP3C401 | Triplex | 282,15 | 4702,5 | |||||
| MGS.MAP4C401 | Quadruplex | 564,3 | 9405 | |||||
| MGS.MAP2C500 | Duplex | 10 bar | 321 | 5350 | 304,95 | 5082,5 | 45 | 75 |
| MGS.MAP3C500 | Triplex | 304,95 | 5082,5 | |||||
| MGS.MAP4C500 | Quadruplex | 609,9 | 10165 | |||||
| MGS.MAP2C600 | Duplex | 10 bar | 366 | 6100 | 347,7 | 5795 | 55 | 75 |
| MGS.MAP3C600 | Triplex | 347,7 | 5795 | |||||
| MGS.MAP4C600 | Quadruplex | 695,4 | 11590 | |||||
| MGS.MAP2C750 | Duplex | 10 bar | 474 | 7900 | 450,3 | 7505 | 55 | 75 |
| MGS.MAP3C750 | Triplex | 450,3 | 7505 | |||||
| MGS.MAP4C750 | Quadruplex | 900,6 | 15010 | |||||
| MGS.MAP2C101 | Duplex | 10 bar | 648 | 10800 | 615,6 | 10260 | 75 | 76 |
| MGS.MAP3C101 | Triplex | 615,6 | 10260 | |||||
| MGS.MAP4C101 | Quadruplex | 1231,2 | 20520 | |||||
Choose the Perfect Capacity for Your Needs
Easily find the capacity that best fits your requirements by reviewing the table below. We offer a range of options designed to meet diverse needs with maximum efficiency and reliability. Once you’ve identified the ideal capacity, don’t hesitate to reach out to us for more information, personalized assistance, or a detailed quote.
Contact us via the email provided below—we’re here to support you every step of the way!
