Medicabay Healthcare Systems introduces Medical Vacuum Plants, engineered to provide a reliable central vacuum (aspiration) supply to hospitals. Our systems are designed to meet the demanding needs of modern healthcare environments, ensuring smooth operations in critical areas such as Operating Rooms, Intensive Care Units, and Patient Rooms, thus supporting optimal patient care and safety.

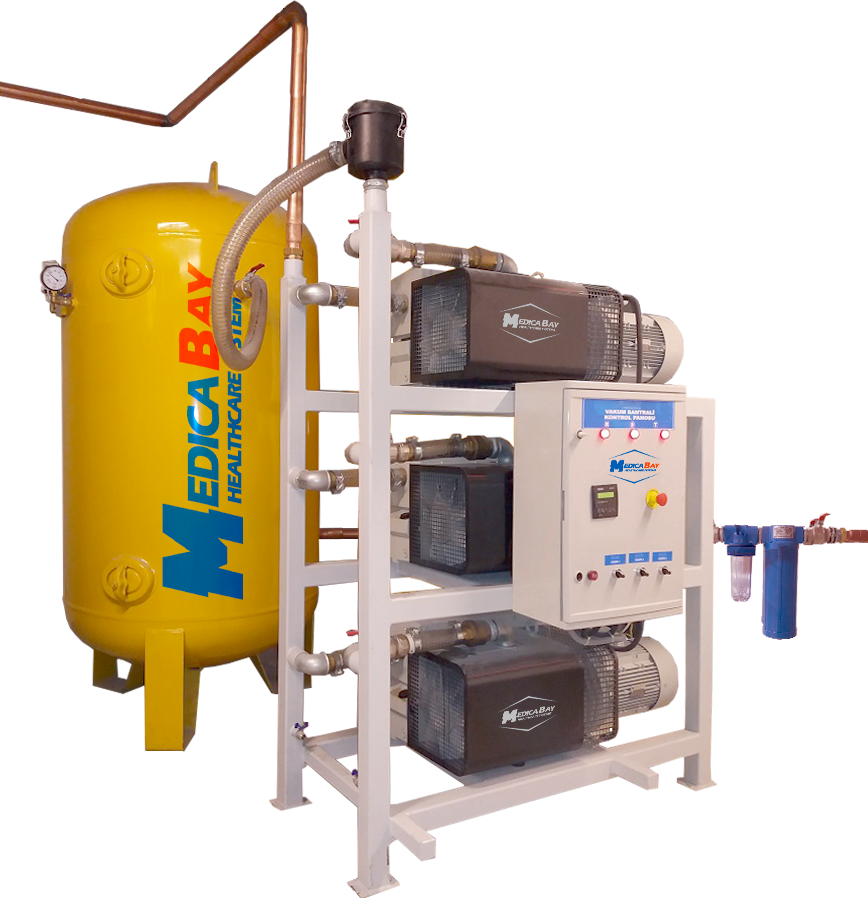

Medical Vacuum Plant
MVP Series- Medical Vacuum Plants
Key Components
- Vacuum Pumps: Our systems are equipped with two, three, or four high-performance rotary vane vacuum pumps, meticulously engineered to deliver a consistent and reliable vacuum supply, even during periods of peak demand. These pumps generate negative pressure of -1 bar, ensuring effective and reliable vacuum performance.
- Bacteria Filter Group: At the heart of our Medical Vacuum Plants is a sophisticated bacterial filter group, featuring single or double filters with an extraordinary 99.995% efficiency. This ensures the elimination of contaminants from the vacuum supply, prioritizing patient safety and adhering to the highest hygiene and infection control standards.
- Vacuum Tank: Our system is equipped with horizontal or vertical vacuum receivers that provide a stable pressure environment, acting as a buffer to minimize fluctuations in vacuum supply and ensuring smooth and uninterrupted operation. The tanks are designed to handle negative pressure and maintain optimal performance at -1 bar.
- Alarm Unit: The integrated alarm system is designed to monitor the vacuum supply and promptly alert hospital staff to any deviations or malfunctions. This ensures a swift response and guarantees the integrity of the system, maintaining patient safety at all times.
- Electric Control Panel and Connection: The automatic control panel, equipped with microprocessor controllers and an intuitive LCD display, serves as the nerve center of the Medical Vacuum Plant. It offers seamless monitoring and adjustment of system parameters. With highly visible indicators and user-friendly push buttons, operation and maintenance are streamlined for maximum efficiency.
Benefits
- Reliability: Ensures a continuous and reliable vacuum supply, even during peak demands, across critical areas of the hospital.
- Safety Assurance: The high-efficiency bacterial filter group guarantees the elimination of harmful contaminants, ensuring the safety of patients and promoting a sterile environment.
- Efficiency:
Our system is designed to provide stable, uninterrupted vacuum performance with minimal supply fluctuations, even under varying operational conditions. - Ease of Use: The intuitive microprocessor-based control panel simplifies operation and monitoring, making it easier for hospital staff to maintain the system and make adjustments when needed.
- Compliance: The Medical Vacuum Plants meet the highest industry standards, ensuring reliable and safe operation in healthcare settings.
Operating Conditions
- Optimal Performance Range: Designed to operate efficiently within the temperature range of 5°C to 45°C, with 20°C to 35°C being optimal for most applications.
- Critical Consideration: The system requires a clean, controlled environment to maintain maximum operational efficiency and longevity.
Technical Features
- Vacuum Pumps: Two, three, or four high-performance rotary vane pumps.
- Max. Working Pressure: 0 bar (vacuum) / -1 bar negative pressure.
- Control Panel Power Connection: 220 V, 50Hz/60Hz
| MEDICAL VACUUM PLANT MODEL CODE | TYPE | CAPACITY OF EACH PUMP | NET PLANT OUTPUT HTM02-01 | POWER | NOISE LEVEL | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (lpm) | (m3/h) | (lpm) | (m3/h) | kW | dB(A) | ||||||||
| 50 Hz | 60 Hz | 50 Hz | 60 Hz | 50 Hz | 60 Hz | 50 Hz | 60 Hz | 50 Hz | 60 Hz | 50 Hz | 60 Hz | ||
| MGS.MVP.2P020 | Duplex | 333 | 400 | 20 | 24 | 333 | 400 | 20 | 24 | 0,75 | 0,90 | 64 | 67 |
| MGS.MVP.3P020 | Triplex | 333 | 400 | 20 | 24 | ||||||||
| MGS.MVP.4P020 | Quadruplex | 667 | 800 | 40 | 48 | ||||||||
| MGS.MVP.2P025 | Duplex | 417 | 483 | 25 | 29 | 417 | 483 | 25 | 29 | 0,75 | 0,90 | 57 | 59 |
| MGS.MVP.3P025 | Triplex | 417 | 483 | 25 | 29 | ||||||||
| MGS.MVP.4P025 | Quadruplex | 833 | 967 | 50 | 58 | ||||||||
| MGS.MVP.2P040 | Duplex | 667 | 800 | 40 | 48 | 667 | 800 | 40 | 48 | 1,10 | 1,35 | 64 | 66 |
| MGS.MVP.3P040 | Triplex | 667 | 800 | 40 | 48 | ||||||||
| MGS.MVP.4P040 | Quadruplex | 1333 | 1600 | 80 | 96 | ||||||||
| MGS.MVP.2P060 | Duplex | 1000 | 1200 | 60 | 72 | 1000 | 1200 | 60 | 72 | 1,50 | 1,80 | 66 | 68 |
| MGS.MVP.3P060 | Triplex | 1000 | 1200 | 60 | 72 | ||||||||
| MGS.MVP.4P060 | Quadruplex | 2000 | 2400 | 120 | 144 | ||||||||
| MGS.MVP.2P106 | Duplex | 1767 | 2117 | 106 | 127 | 1767 | 2117 | 106 | 127 | 2,20 | 2,70 | 66 | 68 |
| MGS.MVP.3P106 | Triplex | 1767 | 2117 | 106 | 127 | ||||||||
| MGS.MVP.4P106 | Quadruplex | 3533 | 4233 | 212 | 254 | ||||||||
| MGS.MVP.2P151 | Duplex | 2517 | 3017 | 151 | 181 | 2517 | 3017 | 151 | 181 | 3,30 | 3,70 | 68 | 70 |
| MGS.MVP.3P151 | Triplex | 2517 | 3017 | 151 | 181 | ||||||||
| MGS.MVP.4P151 | Quadruplex | 5033 | 6033 | 302 | 362 | ||||||||
| MGS.MVP.2P205 | Duplex | 3417 | 4083 | 205 | 245 | 3417 | 4083 | 205 | 245 | 5,50 | 6,60 | 70 | 73 |
| MGS.MVP.3P205 | Triplex | 3417 | 4083 | 205 | 245 | ||||||||
| MGS.MVP.4P205 | Quadruplex | 6833 | 8167 | 410 | 490 | ||||||||
| MGS.MVP.2P305 | Duplex | 5083 | 6083 | 305 | 365 | 5083 | 6083 | 305 | 365 | 7,50 | 9,00 | 71 | 74 |
| MGS.MVP.3P305 | Triplex | 5083 | 6083 | 305 | 365 | ||||||||
| MGS.MVP.4P305 | Quadruplex | 10167 | 12167 | 610 | 730 | ||||||||
Choose the Perfect Capacity for Your Needs
Easily find the capacity that best fits your requirements by reviewing the table below. We offer a range of options designed to meet diverse needs with maximum efficiency and reliability. Once you’ve identified the ideal capacity, don’t hesitate to reach out to us for more information, personalized assistance, or a detailed quote.
Contact us via the email provided below—we’re here to support you every step of the way!
